Missing Codepoints

list of missing codepoints in Material Icons

As a Saturday project, I unearthed the missing codepoints from Material Icons and made a pull request for Google.

Thanks to a recent update, developers and designers have about 100 additional icons to use in their projects. Unfortunately, they can no longer find the codepoints on the official website, only the icon names. To make matters worse, the codepoints file on Google’s repo hasn’t been updated to show the new icons.

Personally, I need to know these values to render icons in D3. Having a website that shows both codepoints and icon names helps me save time. There seem to be many others who also need to know both.

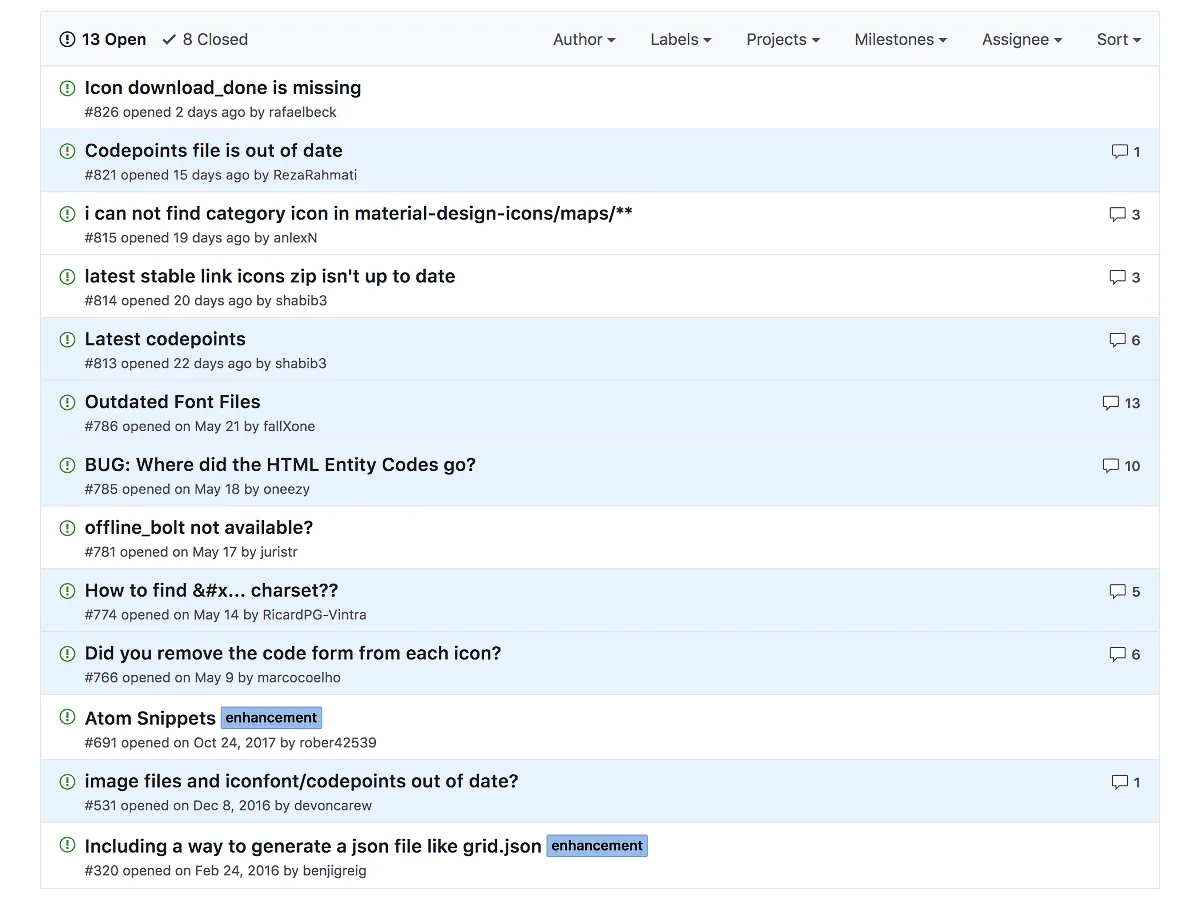

there are many open issues on Google's repo asking for codepoints to be updated
There are many open issues on Google’s repo asking for codepoints to be updated.

To solve this problem, I created an Ember app that finds all icons in 3 steps: (1) render each value from e000 to efff (4096 possibilities) as an icon; (2) get the element width (= 24px if icon is defined, < 24px otherwise), and (3) remove elements that aren’t icons. Because I was updating the DOM many times, the search was rather a slow task.

Once finished, I had 1036 codepoints. I knew how to map 932 of them to an icon name from the existing codepoints file. I had to find out the icon name for the missing 104.

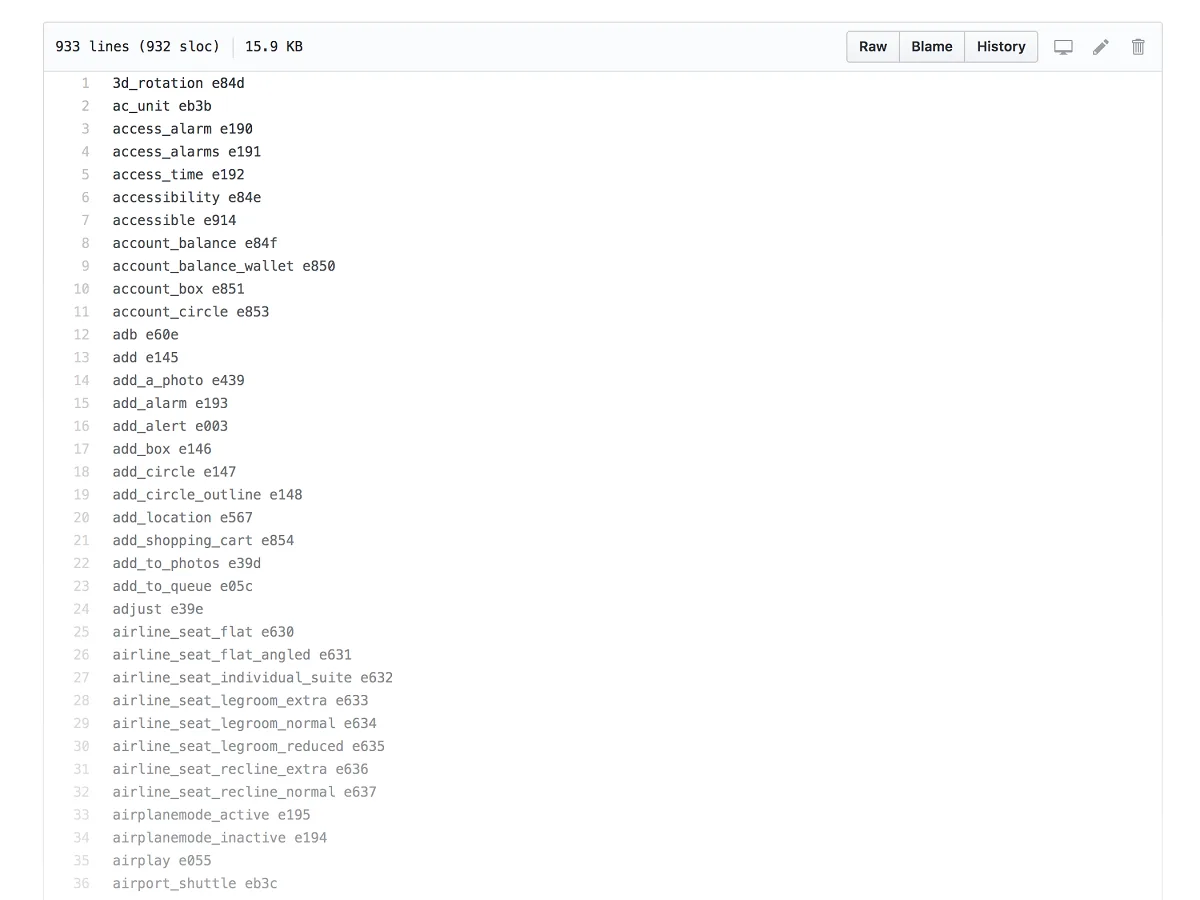

Google's codepoint file listed 932 icons but was missing 104 icons.
Google’s codepoint file listed 932 icons but was missing 104 icons.

In most cases, I was able to find the icon name from the website. The manual search, again, was slow and made me wish that I could search by drawing the icon, like I can with LaTeX symbols. In 15 instances, the website didn’t list the icon, so I had to guess the icon name, much akin to guessing a password.

Guessing turned out to be somewhat fun. It helped that, oftentimes, Google (1) uses a specific range for an icon category, (2) assigns new icons to a category and a codepoint in the correct range, and (3) follows a naming convention (be straightforward and use words such as _add, _circle, or _outline to describe the looks).

In the end, I was able to find the codepoints and icon names for 97 out of 104 missing icons. Feel free to check all icons at https://material-icons.herokuapp.com/.

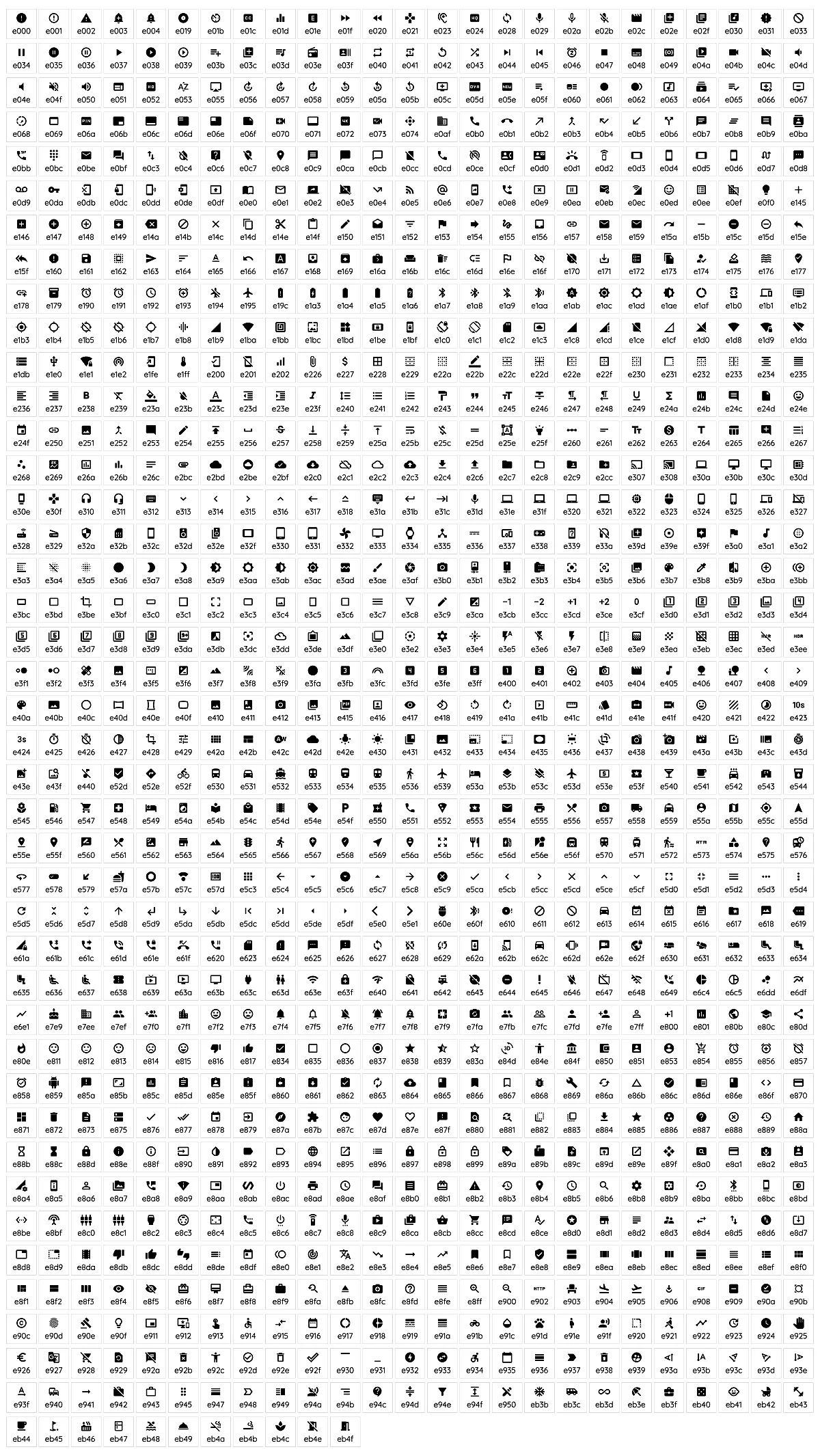

Material Icons has 1036 icons


You can find the code in its entirety here:

Download from GitHub
